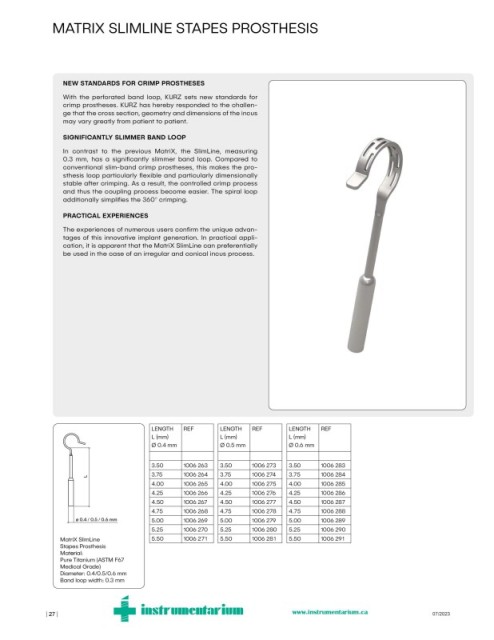

Page 33 - ENT IMPLANTS CATALOGUE IMPLANTS ORL

MATRIX SLIMLINE STAPES PROSTHESIS

NEW STANDARDS FOR CRIMP PROSTHESES
With the perforated band loop, KURZ sets new standards for
crimp prostheses. KURZ has hereby responded to the challen-
ge that the cross section, geometry and dimensions of the incus
may vary greatly from patient to patient.

SIGNIFICANTLY SLIMMER BAND LOOP
In contrast to the previous MatriX, the SlimLine, measuring
0.3 mm, has a significantly slimmer band loop. Compared to
conventional slim-band crimp prostheses, this makes the pro-
sthesis loop particularly flexible and particularly dimensionally
stable after crimping. As a result, the controlled crimp process
and thus the coupling process become easier. The spiral loop
additionally simplifies the 360° crimping.

PRACTICAL EXPERIENCES
The experiences of numerous users confirm the unique advan-
tages of this innovative implant generation. In practical appli-
cation, it is apparent that the MatriX SlimLine can preferentially
be used in the case of an irregular and conical incus process.

LENGTH REF LENGTH REF LENGTH REF
L (mm) L (mm) L (mm)
Ø 0.4 mm Ø 0.5 mm Ø 0.6 mm

3.50 1006 263 3.50 1006 273 3.50 1006 283
3.75 1006 264 3.75 1006 274 3.75 1006 284
L
4.00 1006 265 4.00 1006 275 4.00 1006 285
4.25 1006 266 4.25 1006 276 4.25 1006 286
4.50 1006 267 4.50 1006 277 4.50 1006 287
4.75 1006 268 4.75 1006 278 4.75 1006 288
ø 0.4 / 0.5 / 0.6 mm 5.00 1006 269 5.00 1006 279 5.00 1006 289
5.25 1006 270 5.25 1006 280 5.25 1006 290
MatriX SlimLine 5.50 1006 271 5.50 1006 281 5.50 1006 291
Stapes Prosthesis
Material:
er
Pure Titanium (ASTM F67
Medical Grade)
Diameter: 0.4/0.5/0.6 mm
Band loop width: 0.3 mm

| 27 | www.instrumentarium.ca 07/2023
