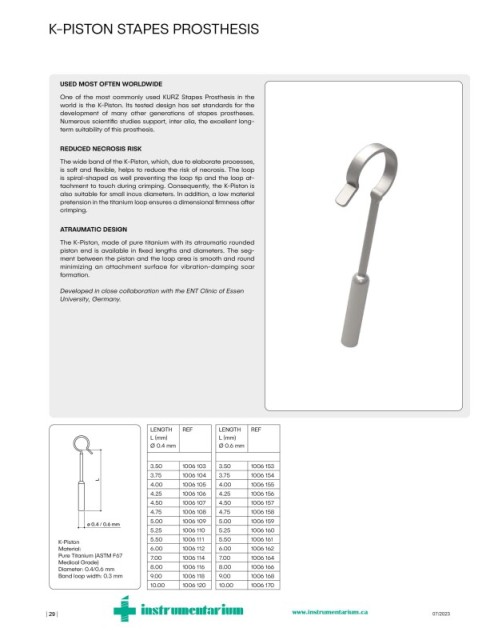

K-PISTON STAPES PROSTHESIS

USED MOST OFTEN WORLDWIDE
One of the most commonly used KURZ Stapes Prosthesis in the
world is the K-Piston. Its tested design has set standards for the
development of many other generations of stapes prostheses.
Numerous scientific studies support, inter alia, the excellent long-
term suitability of this prosthesis.

REDUCED NECROSIS RISK
The wide band of the K-Piston, which, due to elaborate processes,
is soft and flexible, helps to reduce the risk of necrosis. The loop
is spiral-shaped as well preventing the loop tip and the loop at-
tachment to touch during crimping. Consequently, the K-Piston is
also suitable for small incus diameters. In addition, a low material
pretension in the titanium loop ensures a dimensional firmness after
crimping.

ATRAUMATIC DESIGN
The K-Piston, made of pure titanium with its atraumatic rounded
piston end is available in fixed lengths and diameters. The seg-
ment between the piston and the loop area is smooth and round
minimizing an attachment surface for vibration-damping scar
formation.
Developed in close collaboration with the ENT Clinic of Essen
University, Germany.

LENGTH REF LENGTH REF
L (mm) L (mm)
Ø 0.4 mm Ø 0.6 mm

3.50 1006 103 3.50 1006 153
3.75 1006 104 3.75 1006 154
L
4.00 1006 105 4.00 1006 155
4.25 1006 106 4.25 1006 156
4.50 1006 107 4.50 1006 157
4.75 1006 108 4.75 1006 158
5.00 1006 109 5.00 1006 159
ø 0.4 / 0.6 mm
5.25 1006 110 5.25 1006 160
5.50 1006 111 5.50 1006 161
K-Piston
Material: 6.00 1006 112 6.00 1006 162
Pure Titanium (ASTM F67 7.00 1006 114 7.00 1006 164
Medical Grade)
Diameter: 0.4/0.6 mm 8.00 1006 116 8.00 1006 166
Band loop width: 0.3 mm 9.00 1006 118 9.00 1006 168
10.00 1006 120 10.00 1006 170
