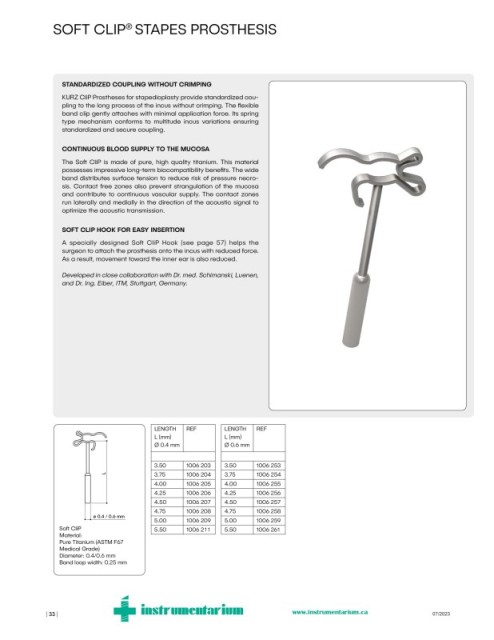

SOFT CLIP STAPES PROSTHESIS
®

STANDARDIZED COUPLING WITHOUT CRIMPING
KURZ CliP Prostheses for stapedioplasty provide standardized cou-
pling to the long process of the incus without crimping. The flexible
band clip gently attaches with minimal application force. Its spring
type mechanism conforms to multitude incus variations ensuring
standardized and secure coupling.

CONTINUOUS BLOOD SUPPLY TO THE MUCOSA
The Soft CliP is made of pure, high quality titanium. This material
possesses impressive long-term biocompatibility benefits. The wide
band distributes surface tension to reduce risk of pressure necro-
sis. Contact free zones also prevent strangulation of the mucosa
and contribute to continuous vascular supply. The contact zones
run laterally and medially in the direction of the acoustic signal to
optimize the acoustic transmission.

SOFT CLIP HOOK FOR EASY INSERTION
A specially designed Soft CliP Hook (see page 57) helps the
surgeon to attach the prosthesis onto the incus with reduced force.
As a result, movement toward the inner ear is also reduced.

Developed in close collaboration with Dr. med. Schimanski, Luenen,
and Dr. Ing. Eiber, ITM, Stuttgart, Germany.

LENGTH REF LENGTH REF
L (mm) L (mm)
Ø 0.4 mm Ø 0.6 mm

3.50 1006 203 3.50 1006 253
L 3.75 1006 204 3.75 1006 254
4.00 1006 205 4.00 1006 255
4.25 1006 206 4.25 1006 256
4.50 1006 207 4.50 1006 257
4.75 1006 208 4.75 1006 258
ø 0.4 / 0.6 mm
5.00 1006 209 5.00 1006 259
Soft CliP 5.50 1006 21 1 5.50 1006 261
Material:
Pure Titanium (ASTM F67
Medical Grade)
Diameter: 0.4/0.6 mm
Band loop width: 0.25 mm
