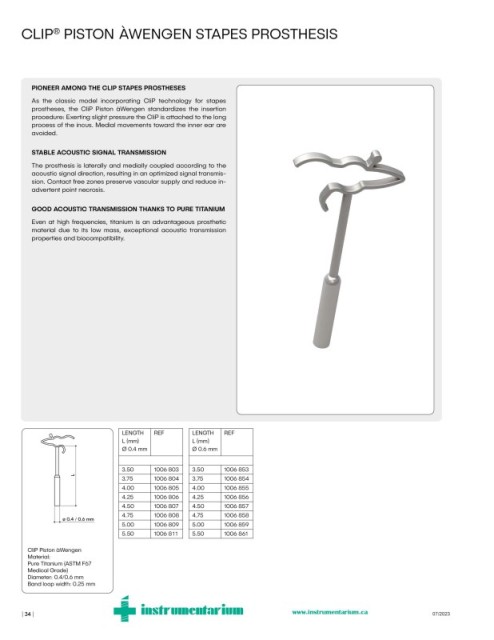

Page 40 - ENT IMPLANTS CATALOGUE IMPLANTS ORL

CLIP PISTON ÀWENGEN STAPES PROSTHESIS
®

PIONEER AMONG THE CLIP STAPES PROSTHESES
As the classic model incorporating CliP technology for stapes
prostheses, the CliP Piston àWengen standardizes the insertion
procedure: Exerting slight pressure the CliP is attached to the long
process of the incus. Medial movements toward the inner ear are
avoided.

STABLE ACOUSTIC SIGNAL TRANSMISSION
The prosthesis is laterally and medially coupled according to the
acoustic signal direction, resulting in an optimized signal transmis-
sion. Contact free zones preserve vascular supply and reduce in-
advertent point necrosis.

GOOD ACOUSTIC TRANSMISSION THANKS TO PURE TITANIUM
Even at high frequencies, titanium is an advantageous prosthetic
material due to its low mass, exceptional acoustic transmission
properties and biocompatibility.

LENGTH REF LENGTH REF
L (mm) L (mm)
Ø 0.4 mm Ø 0.6 mm

3.50 1006 803 3.50 1006 853
L
3.75 1006 804 3.75 1006 854
4.00 1006 805 4.00 1006 855
4.25 1006 806 4.25 1006 856
4.50 1006 807 4.50 1006 857
4.75 1006 808 4.75 1006 858
ø 0.4 / 0.6 mm
5.00 1006 809 5.00 1006 859
5.50 1006 81 1 5.50 1006 861
CliP Piston àWengen
Material:
Pure Titanium (ASTM F67
Medical Grade)
Diameter: 0.4/0.6 mm
Band loop width: 0.25 mm
