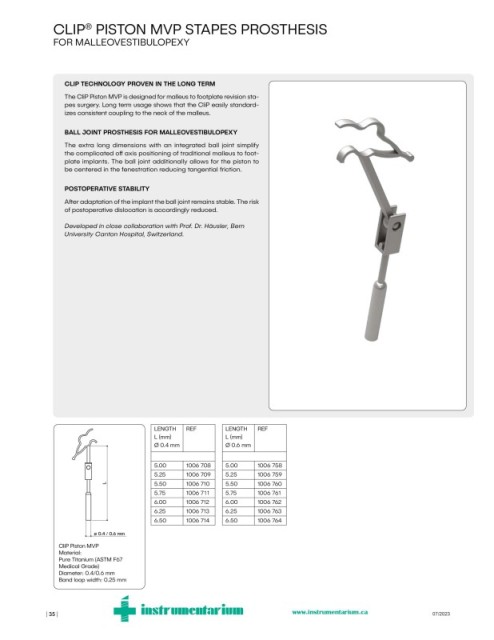

CLIP PISTON MVP STAPES PROSTHESIS
®
FOR MALLEOVESTIBULOPEXY

CLIP TECHNOLOGY PROVEN IN THE LONG TERM
The CliP Piston MVP is designed for malleus to footplate revision sta-
pes surgery. Long term usage shows that the CliP easily standard-
izes consistent coupling to the neck of the malleus.

BALL JOINT PROSTHESIS FOR MALLEOVESTIBULOPEXY
The extra long dimensions with an integrated ball joint simplify
the complicated off axis positioning of traditional malleus to foot-
plate implants. The ball joint additionally allows for the piston to
be centered in the fenestration reducing tangential friction.
POSTOPERATIVE STABILITY

After adaptation of the implant the ball joint remains stable. The risk
of postoperative dislocation is accordingly reduced.
Developed in close collaboration with Prof. Dr. Häusler, Bern
University Canton Hospital, Switzerland.

LENGTH REF LENGTH REF
L (mm) L (mm)
Ø 0.4 mm Ø 0.6 mm

5.00 1006 708 5.00 1006 758
5.25 1006 709 5.25 1006 759
L 5.50 1006 710 5.50 1006 760
5.75 1006 711 5.75 1006 761
6.00 1006 712 6.00 1006 762
6.25 1006 713 6.25 1006 763
6.50 1006 714 6.50 1006 764
ø 0.4 / 0.6 mm
CliP Piston MVP
Material:
Pure Titanium (ASTM F67
Medical Grade)
Diameter: 0.4/0.6 mm
Band loop width: 0.25 mm
