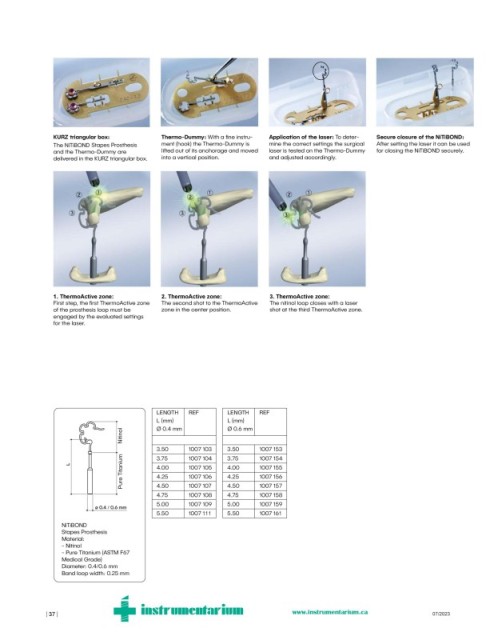

KURZ triangular box: Thermo-Dummy: With a fine instru- Application of the laser: To deter- Secure closure of the NiTiBOND:
The NiTiBOND Stapes Prosthesis ment (hook) the Thermo-Dummy is mine the correct settings the surgical After setting the laser it can be used
and the Thermo-Dummy are lifted out of its anchorage and moved laser is tested on the Thermo-Dummy for closing the NiTiBOND securely.
delivered in the KURZ triangular box. into a vertical position. and adjusted accordingly.

➁ ➀ ➁ ➀ ➁ ➀
➂ ➂ ➂

1. ThermoActive zone: 2. ThermoActive zone: 3. ThermoActive zone:
First step, the first ThermoActive zone The second shot to the ThermoActive The nitinol loop closes with a laser
of the prosthesis loop must be zone in the center position. shot at the third ThermoActive zone.
engaged by the evaluated settings
for the laser.

LENGTH REF LENGTH REF
L (mm) L (mm)
Ø 0.4 mm Ø 0.6 mm
Nitinol
3.50 1007 103 3.50 1007 153
Pure Titanium 4.25 1007 106 4.25 1007 156
L 3.75 1007 104 3.75 1007 154
1007 105
4.00
1007 155
4.00
4.50
4.75 1007 107 4.50 1007 157
1007 108
1007 158
4.75
5.00 1007 109 5.00 1007 159
ø 0.4 / 0.6 mm
5.50 1007 11 1 5.50 1007 161
NiTiBOND
Stapes Prosthesis
Material:
- Nitinol
- Pure Titanium (ASTM F67
Medical Grade)
Diameter: 0.4/0.6 mm
Band loop width: 0.25 mm
