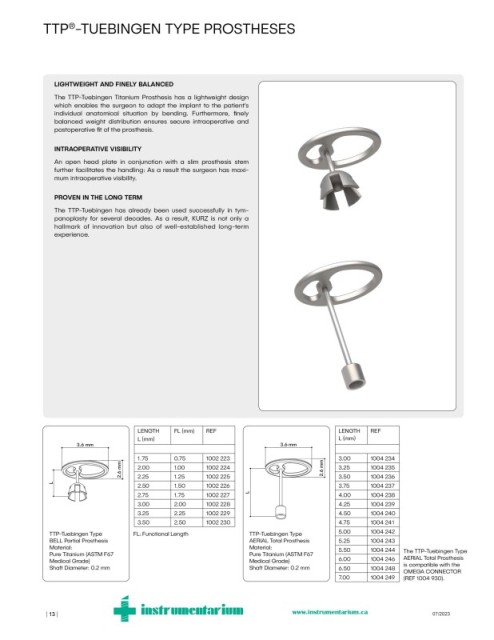

TTP -TUEBINGEN TYPE PROSTHESES
®

LIGHTWEIGHT AND FINELY BALANCED
The TTP-Tuebingen Titanium Prosthesis has a lightweight design
which enables the surgeon to adapt the implant to the patient‘s
individual anatomical situation by bending. Furthermore, finely
balanced weight distribution ensures secure intraoperative and
postoperative fit of the prosthesis.

INTRAOPERATIVE VISIBILITY
An open head plate in conjunction with a slim prosthesis stem
further facilitates the handling: As a result the surgeon has maxi-
mum intraoperative visibility.

PROVEN IN THE LONG TERM
The TTP-Tuebingen has already been used successfully in tym-
panoplasty for several decades. As a result, KURZ is not only a
hallmark of innovation but also of well-established long-term
experience.

LENGTH FL (mm) REF LENGTH REF
L (mm) L (mm)
3.6 mm 3.6 mm
1.75 0.75 1002 223 3.00 1004 234
2.6 mm 2.00 1.00 1002 224 2.6 mm 3.25 1004 235
1.25
2.25
3.50
1004 236
1002 225
L
2.50 1.50 1002 226 3.75 1004 237
2.75 1.75 1002 227 L 4.00 1004 238
3.00 2.00 1002 228 4.25 1004 239
3.25 2.25 1002 229 4.50 1004 240
3.50 2.50 1002 230 4.75 1004 241
TTP-Tuebingen Type FL: Functional Length TTP-Tuebingen Type 5.00 1004 242
BELL Partial Prosthesis AERIAL Total Prosthesis 5.25 1004 243
Material: Material: 5.50 1004 244 The TTP-Tuebingen Type
Pure Titanium (ASTM F67 Pure Titanium (ASTM F67
Medical Grade) Medical Grade) 6.00 1004 246 AERIAL Total Prosthesis
is compatible with the
Shaft Diameter: 0.2 mm Shaft Diameter: 0.2 mm 6.50 1004 248 OMEGA CONNECTOR
7.00 1004 249 (REF 1004 930).
