Page 21 - ENT IMPLANTS CATALOGUE IMPLANTS ORL

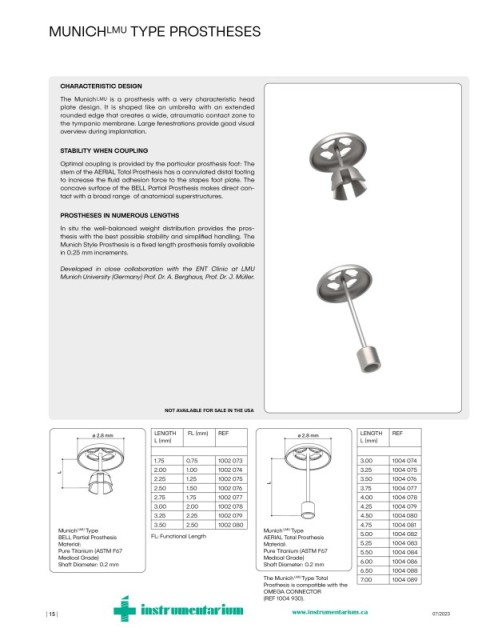

MUNICH LMU TYPE PROSTHESES

CHARACTERISTIC DESIGN
The Munich LMU is a prosthesis with a very characteristic head
plate design. It is shaped like an umbrella with an extended
rounded edge that creates a wide, atraumatic contact zone to
the tympanic membrane. Large fenestrations provide good visual
overview during implantation.

STABILITY WHEN COUPLING
Optimal coupling is provided by the particular prosthesis foot: The
stem of the AERIAL Total Prosthesis has a cannulated distal footing
to increase the fluid adhesion force to the stapes foot plate. The
concave surface of the BELL Partial Prosthesis makes direct con-
tact with a broad range of anatomical superstructures.

PROSTHESES IN NUMEROUS LENGTHS
In situ the well-balanced weight distribution provides the pros-
thesis with the best possible stability and simplified handling. The
Munich Style Prosthesis is a fixed length prosthesis family available
in 0.25 mm increments.

Developed in close collaboration with the ENT Clinic at LMU
Munich University (Germany) Prof. Dr. A. Berghaus, Prof. Dr. J. Müller.

NOT AVAILABLE FOR SALE IN THE USA

ø 2.8 mm LENGTH FL (mm) REF ø 2.8 mm LENGTH REF
L (mm) L (mm)

1.75 0.75 1002 073 3.00 1004 074
2.00 1.00 1002 074 3.25 1004 075
L
2.25 1.25 1002 075 3.50 1004 076
L
2.50 1.50 1002 076 3.75 1004 077
2.75 1.75 1002 077 4.00 1004 078
3.00 2.00 1002 078 4.25 1004 079
3.25 2.25 1002 079 4.50 1004 080
3.50 2.50 1002 080 4.75 1004 081
Munich LMU Type Munich LMU Type 5.00 1004 082
BELL Partial Prosthesis FL: Functional Length AERIAL Total Prosthesis
Material: Material: 5.25 1004 083
Pure Titanium (ASTM F67 Pure Titanium (ASTM F67 5.50 1004 084
Medical Grade) Medical Grade) 6.00 1004 086
Shaft Diameter: 0.2 mm Shaft Diameter: 0.2 mm
6.50 1004 088
The Munich LMU Type Total 7.00 1004 089
bl
Prosthesis is compatible with the
OMEGA CONNECTOR
(REF 1004 930).
| 15 | www.instrumentarium.ca 07/2023
