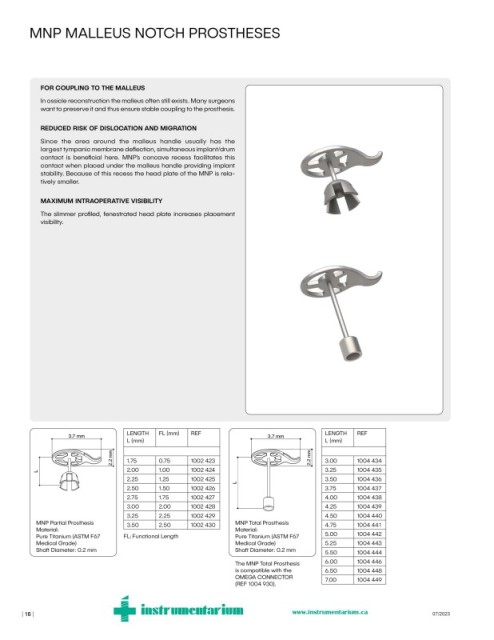

MNP MALLEUS NOTCH PROSTHESES

FOR COUPLING TO THE MALLEUS
In ossicle reconstruction the malleus often still exists. Many surgeons
want to preserve it and thus ensure stable coupling to the prosthesis.

REDUCED RISK OF DISLOCATION AND MIGRATION
Since the area around the malleus handle usually has the
largest tympanic membrane deflection, simultaneous implant/drum
contact is beneficial here. MNP’s concave recess facilitates this
contact when placed under the malleus handle providing implant
stability. Because of this recess the head plate of the MNP is rela-
tively smaller.
MAXIMUM INTRAOPERATIVE VISIBILITY
The slimmer profiled, fenestrated head plate increases placement
visibility.

LENGTH FL (mm) REF LENGTH REF
3.7 mm 3.7 mm
L (mm) L (mm)
2.2 mm 1.75 0.75 1002 423 2.2 mm 3.00 1004 434
2.00 1.00 1002 424 3.25 1004 435
L
2.25 1.25 1002 425 3.50 1004 436
L
2.50 1.50 1002 426 3.75 1004 437
2.75 1.75 1002 427 4.00 1004 438
3.00 2.00 1002 428 4.25 1004 439
3.25 2.25 1002 429 4.50 1004 440
MNP Partial Prosthesis 3.50 2.50 1002 430 MNP Total Prosthesis 4.75 1004 441
Material: Material:
Pure Titanium (ASTM F67 FL: Functional Length Pure Titanium (ASTM F67 5.00 1004 442
Medical Grade) Medical Grade) 5.25 1004 443
Shaft Diameter: 0.2 mm Shaft Diameter: 0.2 mm 5.50 1004 444
The MNP Total Prosthesis 6.00 1004 446
is compatible with the 6.50 1004 448
OMEGA CONNECTOR 7.00 1004 449
(REF 1004 930).
